Product Description

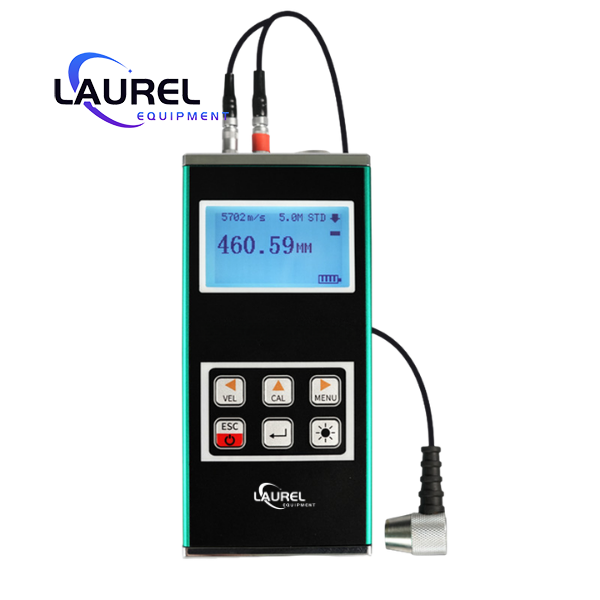

Traditional ultrasonic thickness testing requires grinding off paint, epoxy or anti-corrosion coatings, which damages workpieces and raises labor & time costs. The Laurel S004 through-coating ultrasonic thickness gauge adopts Echo-Echo ultrasonic technology to directly read base metal thickness through up to 3mm non-metallic coatings, realizing full non-destructive inspection. This high-precision portable NDT instrument supports thickness measurement & sound velocity reverse calculation for steel, aluminum, copper, plastic, glass and ceramics, widely deployed in machinery, petrochemical, marine, aerospace and automotive industries.
Functional Features

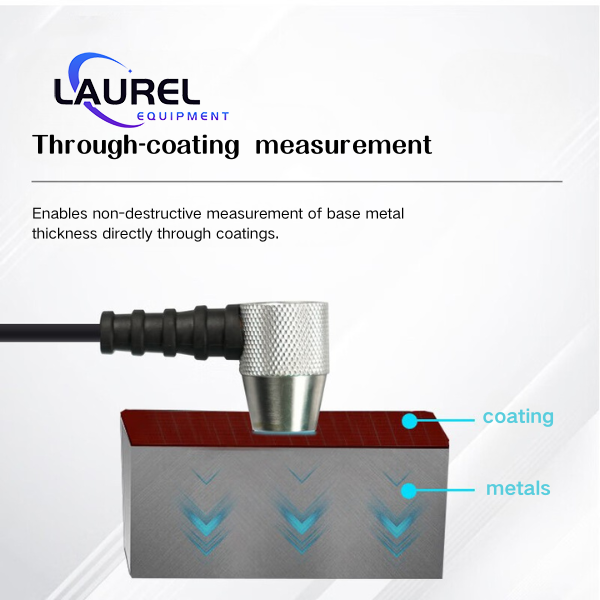

1、Through-Coating Echo-Echo Measuring Mode
Feature: Penetrate coatings up to 3mm thick, dual working modes (Standard / Through-coating)
Advantage: Automatically filter coating echo signals, only output real substrate thickness
Benefit: No surface grinding, save coating repair cost, 70% faster on-site inspection efficiency
2、0.01mm Ultra High Resolution & Precise Accuracy
Feature: Resolution 0.01mm, accuracy ±(0.6%H + 0.05) mm, H=workpiece actual thickness
Advantage: Capture tiny thickness loss caused by corrosion, fit strict industrial quality control
Benefit: Avoid missed pipeline & vessel corrosion risks, reduce equipment failure loss
3、500–18000 m/s Wide Sound Velocity Calibration Range
Feature: Support sound velocity calibration via known thickness block, reverse calculate material acoustic speed
Advantage: Compatible with steel, cast iron, aluminum, copper, plastic, glass, fiberglass, ceramics
Benefit: One device covers all common ultrasonic conductive materials, cut procurement cost
4、Aluminum-Magnesium Alloy Shockproof Housing
Feature: Compact 145×70×32mm alloy shell, anti-vibration, anti-impact & anti-electromagnetic interference
Advantage: Stable performance under harsh workshop, offshore, outdoor construction environments
Benefit: Long service life, no frequent replacement of testing equipment

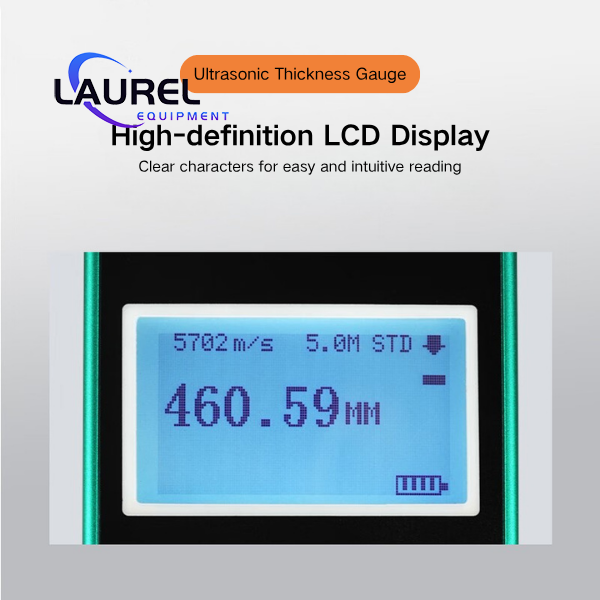

5、Long-Lasting Lithium Battery with EL Backlight
Feature: Over 160h continuous working without backlight, auto sleep & auto power-off energy-saving, bright EL backlight
Advantage: All-day field inspection without frequent charging, clear reading in dark warehouses & night operation
Benefit: Eliminate power outage interruption during long-term engineering detection

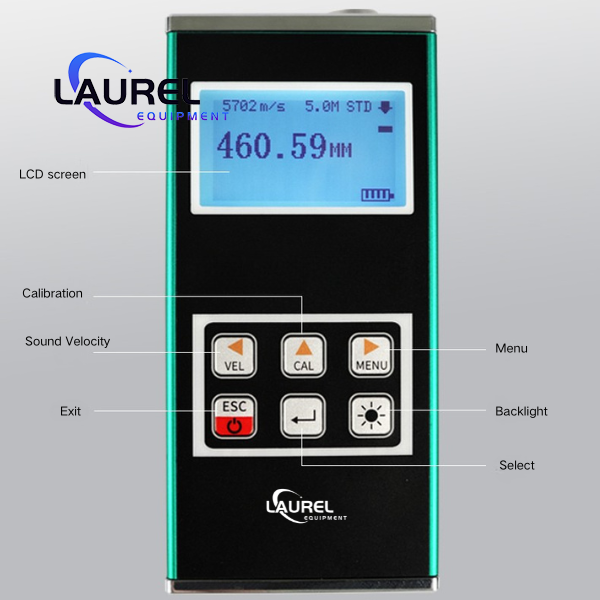

6、Humanized Multi-Language Operation System
Feature: Switch metric/imperial units, Chinese & English UI, coupling status real-time indication
Advantage: Easy operation for global technicians, real-time remind poor probe coupling
Benefit: Reduce operation error, lower training cost for new inspectors
Technical Parameters
| Item | Detailed Specification |
|---|---|
| Measuring Range (Steel) | Standard Mode: 0.65–500 mm; Through-coating Mode: 0.65–50 mm |
| Max Penetrable Coating Thickness | Up to 3 mm |
| Display Resolution | 0.01 mm |
| Measurement Units | Metric (mm) / Imperial (inch) switchable |
| Measurement Accuracy | ±(0.6%H + 0.05) mm, H = actual workpiece thickness |
| Sound Velocity Adjustable Range | 500–18000 m/s |
| Display Screen | High-contrast LCD with high-brightness EL backlight |
| Operating Modes | Standard Pulse-Echo Mode, Through-Coating Echo-Echo Mode |
| Power Supply | Rechargeable lithium battery |
| Max Continuous Working Time | ≥160 hours (backlight off) |
| Overall Dimension (L×W×H) | 145 × 70 × 32 mm |
Wide Application Scenarios
1、Petrochemical & Oil & Gas Industry
Carry out corrosion wall thickness detection on oil pipelines, pressure vessels and storage tanks covered with anti-corrosion paint and epoxy coatings, realizing regular safety monitoring without removing surface protection layers.
2、Shipbuilding & Marine Engineering
Measure the thickness of coated steel plates on hulls, decks, marine pipelines and ballast tanks to evaluate metal thinning caused by seawater corrosion.
3、Steel Structure Engineering (New Added)
Conduct thickness testing for factory steel frames, bridge steel beams, workshop support columns and outdoor steel structures with anti-rust coating. Check corrosion thinning of coated steel components without polishing off surface anti-corrosion layers.
4、Aerospace & Automotive Manufacturing
Conduct thickness quality inspection on coated aluminum alloy structural parts, castings and composite components to guarantee product structural safety.
5、General Machinery Manufacturing
Test steel sheets, cast iron molds, plastic, glass and fiberglass workpieces to control dimensional accuracy during production.
6、Metallurgy & Energy Industry
Monitor wall thickness loss of boiler tubes, heat exchangers and thermal equipment, providing early warning of internal corrosion risks.
 |
