Introduction

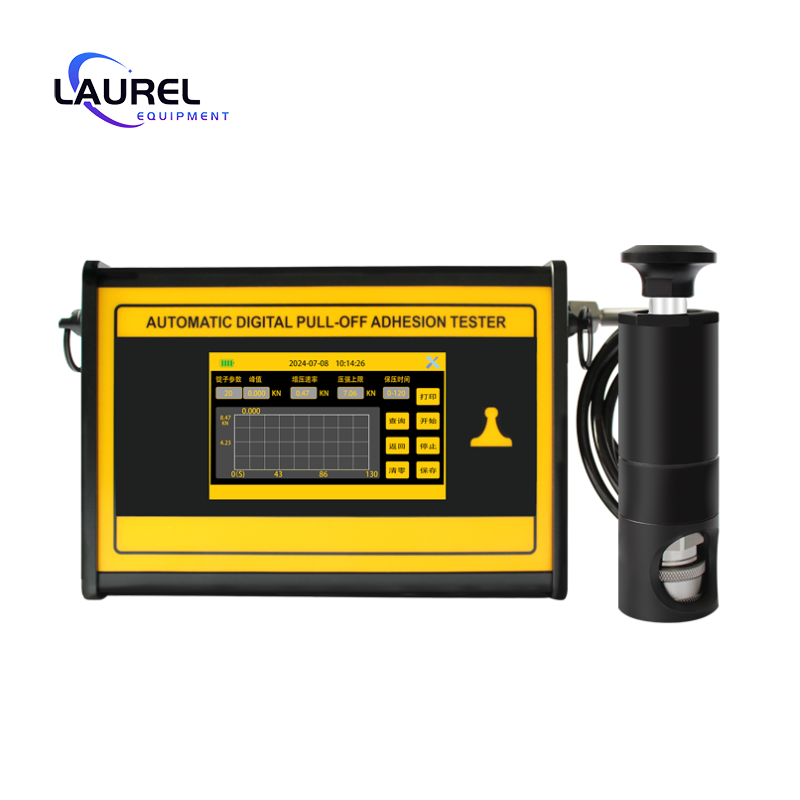

C001 Fully Automatic Pull-off Adhesion Tester
The Fully Automatic Pull-off Adhesion Tester is a newly developed intelligent testing instrument by our company. It performs pull-off tests on coatings of a specified area via hydraulic pressure. The entire pull-off process is completed automatically by the instrument, with a stable and controllable pull-off speed, eliminating errors caused by unstable speed during manual pressurization.

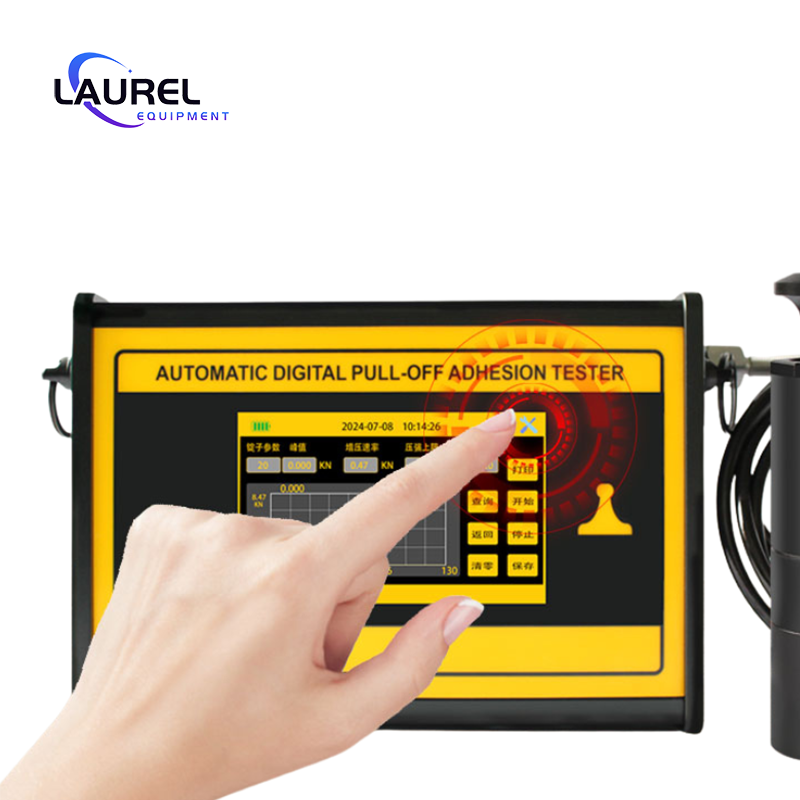

The pull-off force is accurately displayed on a digital screen, with three selectable units: MPa, psi, and kN. The instrument allows setting a pressure upper limit to apply precise pressure on the sample. After reaching the set pressure, a pressure holding time can be configured to evaluate the durability of the sample under sustained pressure.
Advantage
USB flash drive storage technology for the Fully Automatic Pull-off Adhesion Tester, equipped with a Type-C interface. After connecting to a computer, the stored test data can be directly copied withoff installing additional driver software, making the Fully Automatic Pull-off Adhesion Tester simple and convenient to use. |

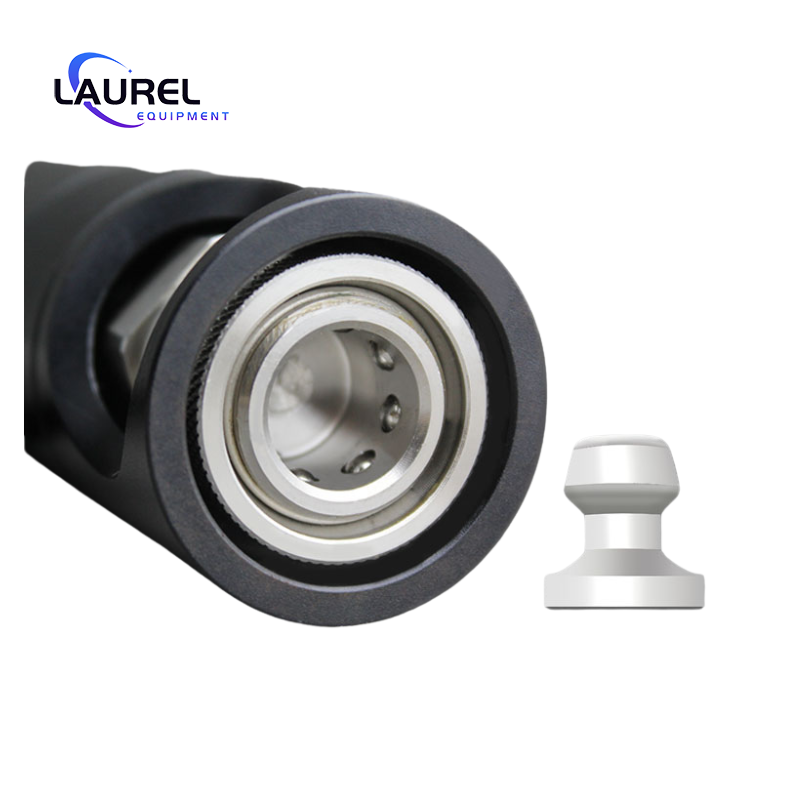

For products with different bonding strengths, the available pull-off stud sizes of the Fully Automatic Pull-off Adhesion Tester are 10, 14, 20 and 50mm, which expands the function and resolution of the Fully Automatic Pull-off Adhesion Tester. |
The Fully Automatic Pull-off Adhesion Tester can store data up to 200,000 entries. |
Each Fully Automatic Pull-off Adhesion Tester is calibrated with a CMA-traceable pressure sensor before leaving the factory, with an accuracy of ±1% of the full scale. |

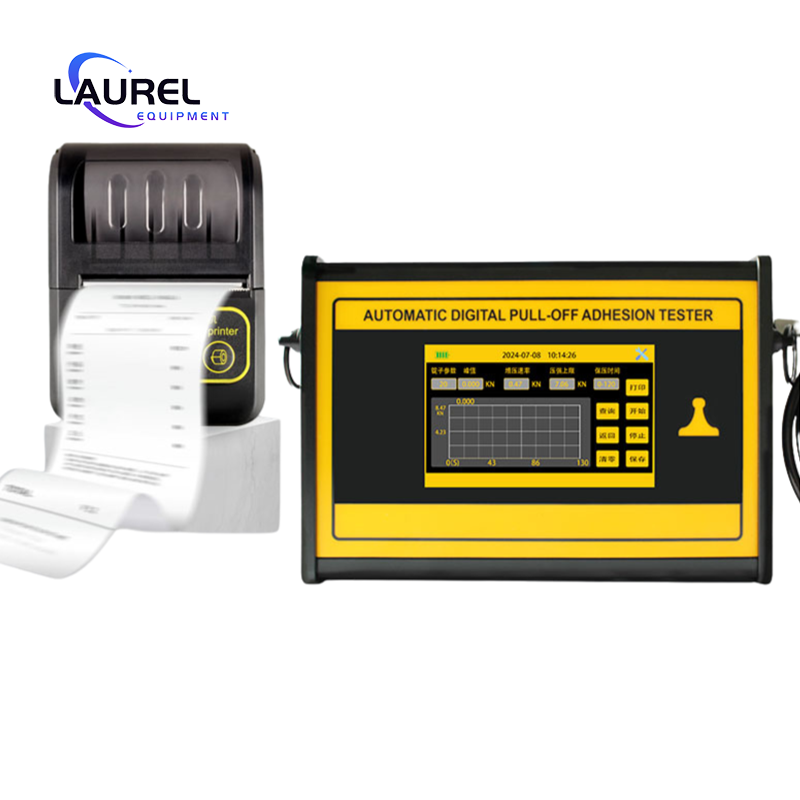

The Fully Automatic Pull-off Adhesion Tester supports Bluetooth printer for direct on-site printing (optional). |
Technical Parameters
Parameter Category | Specification |
Test Principle | Hydraulic automatic pull-off method |
Pull-out Stud Sizes | 10mm, 14mm, 20mm, 50mm (4 specifications, suitable for different bonding strengths) |
Measurement Units | MPa, psi, kN (three units, one-key switching, no conversion required) |
Accuracy | ±1% of full scale |
Power Supply | Built-in rechargeable lithium battery (no external power supply required) |
Data Storage | Internal storage up to 200,000 entries |
Data Export | Type-C interface, U-disk storage mode (driver-free, direct reading and copying) |

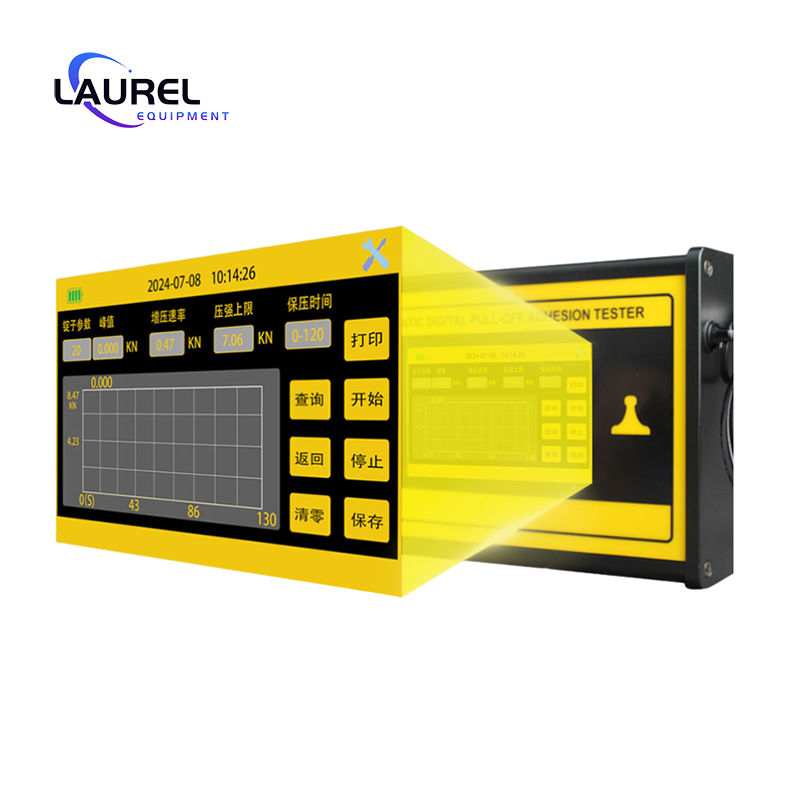

Display Function | LCD screen, real-time pull-off force curve display |
Timing Function | Built-in real-time clock (data with time stamp), configurable pressure holding time |
Optional Accessory | Bluetooth printer (on-site direct printing, optional) |
Device Dimensions | 320mm × 240mm × 180mm (L×W×H, portable and compact design) |
Device Weight | Approximately 8.5kg (lightweight body, easy to carry for outdoor and multi-scene use) |
Working Environment | Temperature: -10℃ ~ 50℃; Humidity: ≤90% RH (wide temperature and humidity range, adaptable to complex on-site environments) |
Application

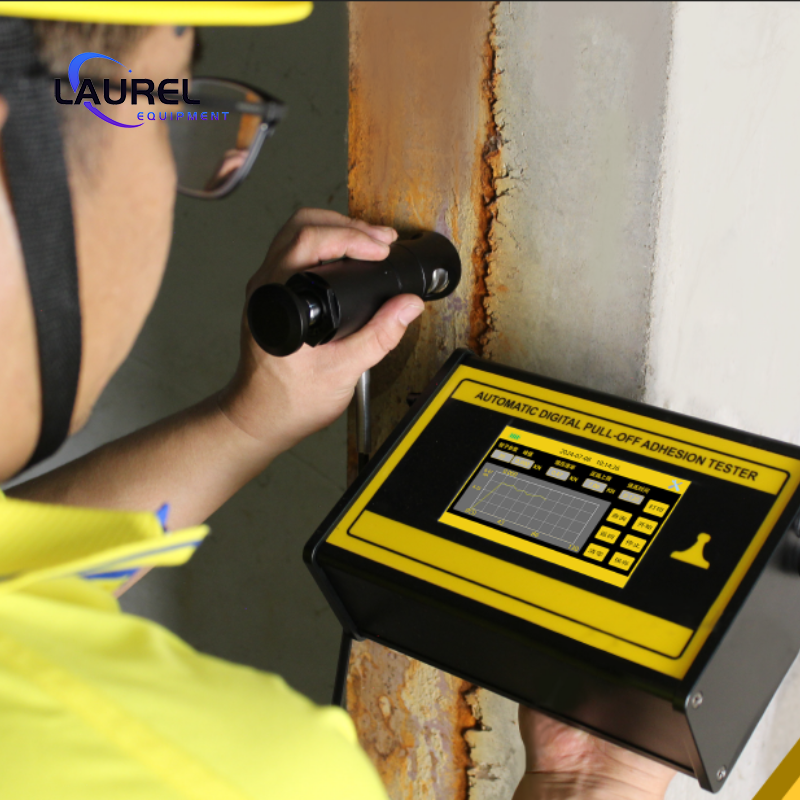

1. Construction Engineering Field: Used for adhesion testing of coatings and bonding layers such as external wall insulation layers, waterproof coatings, and tile bonding layers in construction projects. The portable Fully Automatic Pull-off Adhesion Tester for construction site is suitable for complex offdoor and power-free test environments at construction sites. With an 8.5kg lightweight design and portable size, it ensures that the construction quality meets standards.
2. Industrial Manufacturing Industry: Aimed at metal surface coating and component bonding processes in fields such as automotive, shipbuilding, and aerospace, the Fully Automatic Pull-off Adhesion Tester completes batch adhesion and durability tests on production lines or in laboratories. Its precise size and stable performance meet the efficient testing needs of industrial assembly lines, especially with its multi-specification pull-off studs.
3. Material R&D Laboratory: As core testing equipment in scientific research institutions and university laboratories, the laboratory-grade Fully Automatic Pull-off Adhesion Tester is used for the research, development and verification of the bonding strength performance of new coatings, adhesives, and composite materials. The multi-specification studs, 200,000-entry data storage, and curve display function of the Fully Automatic Pull-off Adhesion Tester support high-precision R&D experiments.
4. Quality Inspection & Supervision: Suitable for third-party quality inspection institutions and engineering supervision units to conduct compliance testing on various coating projects and industrial products. The CMA calibrated Fully Automatic Pull-off Adhesion Tester, with CMA-traceable calibration, complete time stamp records, and a portable body, helps to quickly issue authoritative test reports.
