Introduction

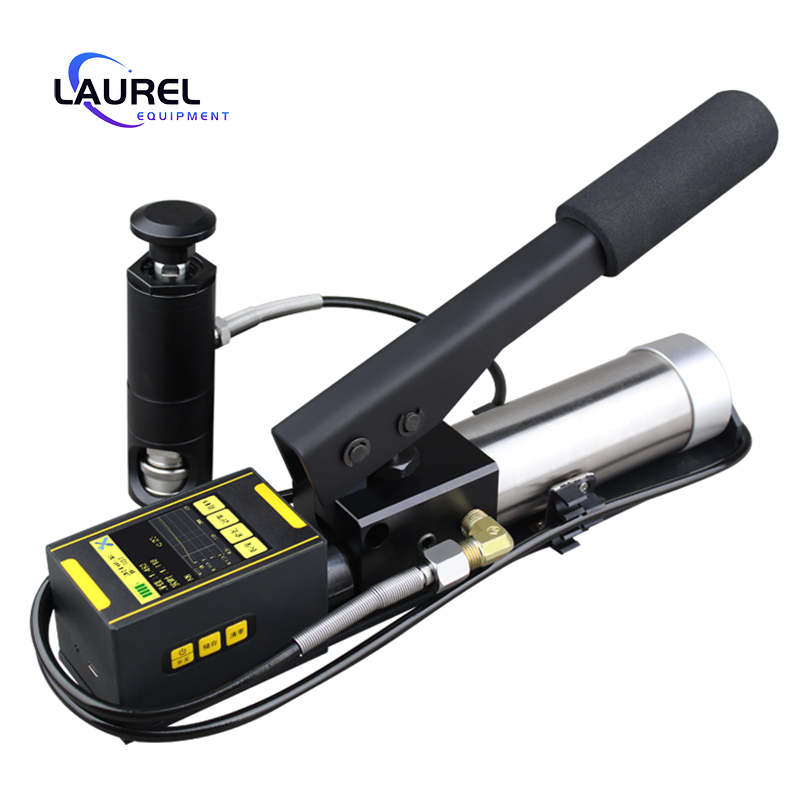

The CO03 touch-screen coating pull-off adhesion tester is a professional testinginstrument designed in accordance with ISO 4624 and other international and nationalstandards. It is specially used to measure the adhesion strength of coatings on substratessuch as metal, paint, plastic spraying, waterproofing materials and concrete. It adopts ahydraulic system to separate the coating from the substrate and displays values in MPa,kN and PSI. Unlike cross-cut testers, this instrument eliminates human observation errors.The portable, lithium-battery powered unit features advanced technology, stableperformance and reliable test results, making it suitable for a wide range of testingscenarios.
Advantage
The portable lithium battery adhesion tester has a lightweight portable design with built-in rechargeable lithium battery, no external power supply required, and is perfectly adapted to on-site construction, production site and laboratory testing, with strong scene applicability and no power limit. |
The touch screen coating pull-off adhesion tester adopts full touch screen operation with one-key Chinese-English switch, simple and convenient to operate; the pressure and display system are calibrated by standard dynamometer, with high-grade industrial pressure sensor, ensuring test accuracy within ±1% (full scale). |
The Type-C interface coating adhesion detector is equipped with U-disk storage technology and Type-C interface, no additional driver software needed for computer connection, realizing direct copy of test data; built-in real-time clock marks all data with test time for easy summary and management. |

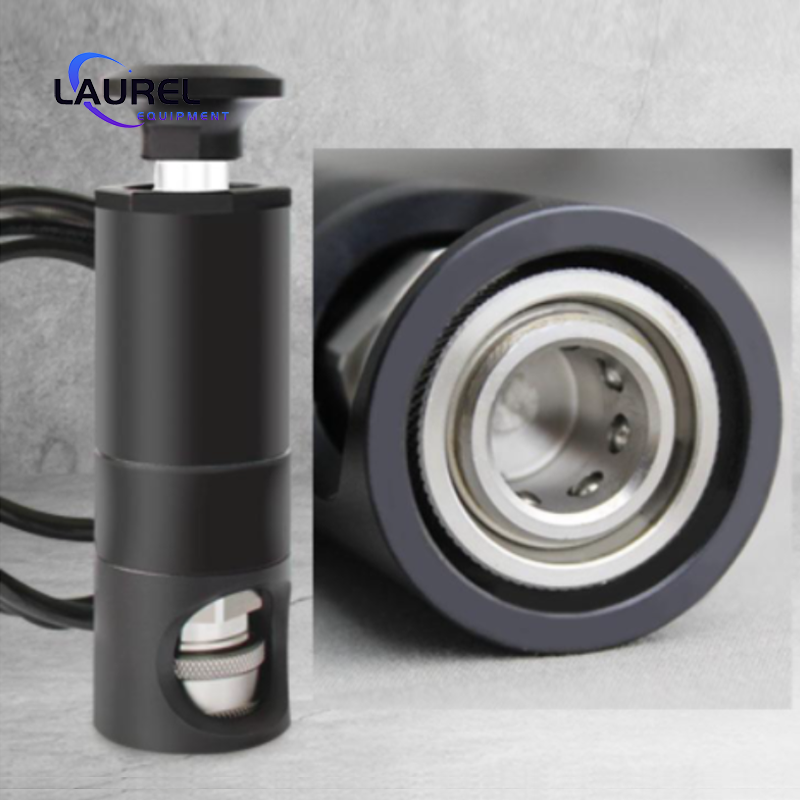

The multi-spec spindle coating adhesion tester provides 10/14/20/50mm pull-off spindles for products with different bonding strengths; self-positioning spindle design ensures no influence on test results for both smooth and rough surfaces, meeting diverse testing needs of different coatings. |
Configured with high-quality hydraulic pump (1-year warranty) and precision oil cylinder for stable and reliable pull-off; uses cost-effective international standard aluminum spindles; alloy + stainless steel main body with portable instrument case, achieving rain, dust and impact resistance for long-term use. |
200,000 pieces of data can be stored and connected to computer; optional Bluetooth printer enables on-site direct printing of test results for convenient data archiving. |
Technical Parameters
Item | Parameter |
Maximum Pressure | 0-10KN; 0-127.38MPa(10mm spindle); 0-64.99MPa(14mm spindle); 0-31.84MPa(20mm spindle); 0-5.09MPa(50mm spindle) |
Accuracy | ±1% (Full Scale) |

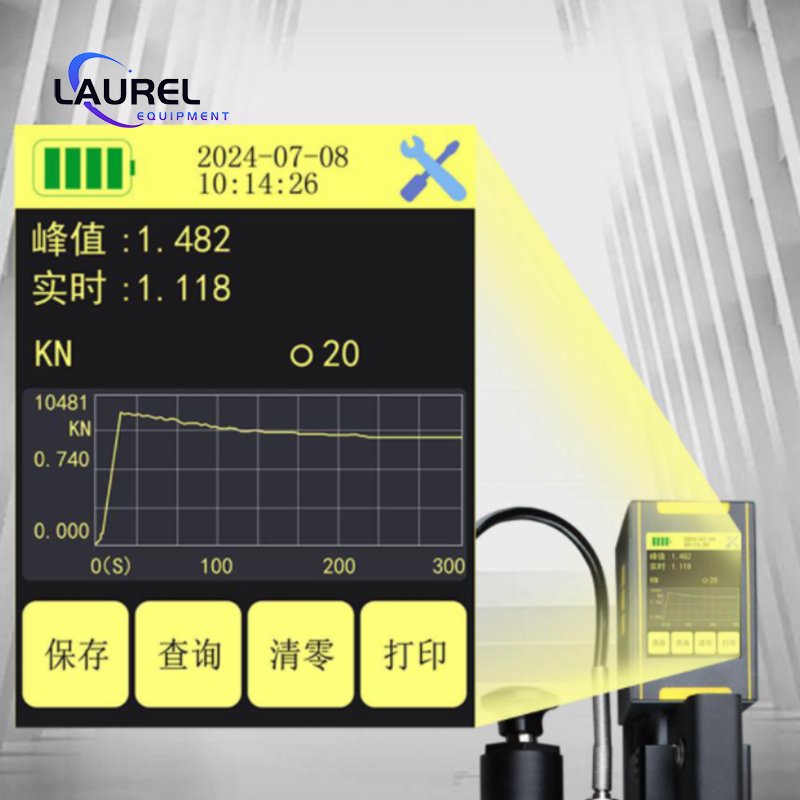

Display & Operation | Full touch screen; Chinese-English one-key switch; KN/MPa/PSI unit optional; pull-off force curve display |
Storage & Transmission | 200,000 data storage; computer connectable; Type-C interface coating adhesion detector with U-disk storage |
Power Supply | Built-in rechargeable lithium battery; Type-C charging interface |
Pressurization Mode | Manual (stable and labor-saving) |
Additional Functions | Automatic shutdown; optional Bluetooth printing (Bluetooth printing pull-off adhesion tester) |
Application
1.The touch screen coating pull-off adhesion tester is widely used for measuring the adhesion of paint, plastic spraying, chrome/nickel plating coatings on metal substrates, an essential tool for coating quality testing in hardware, mechanical processing and surface treatment industries.

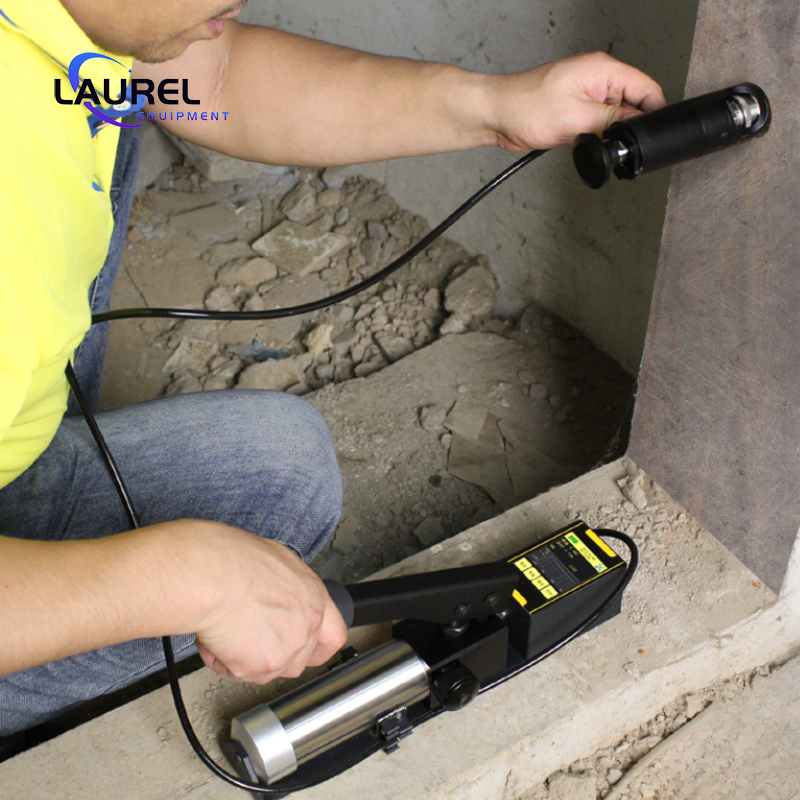

2.The portable lithium battery adhesion tester is suitable for adhesion testing of various decorative and functional coatings on building walls, floors and other concrete surfaces, providing accurate data for building decoration and waterproof engineering acceptance.
3.The multi-spec spindle coating adhesion tester meets the adhesion testing needs of different coating materials and thicknesses, applicable to laboratory precision testing and production workshop on-site random inspection, with flexible and diverse use.
4.As a standard-compliant professional testing instrument, it is used by quality supervision departments for on-site acceptance and sampling inspection of coating adhesion in various industries, with authoritative and reliable test results for fair quality evaluation.
