C002
| Quantity: | |
|---|---|
Introduction

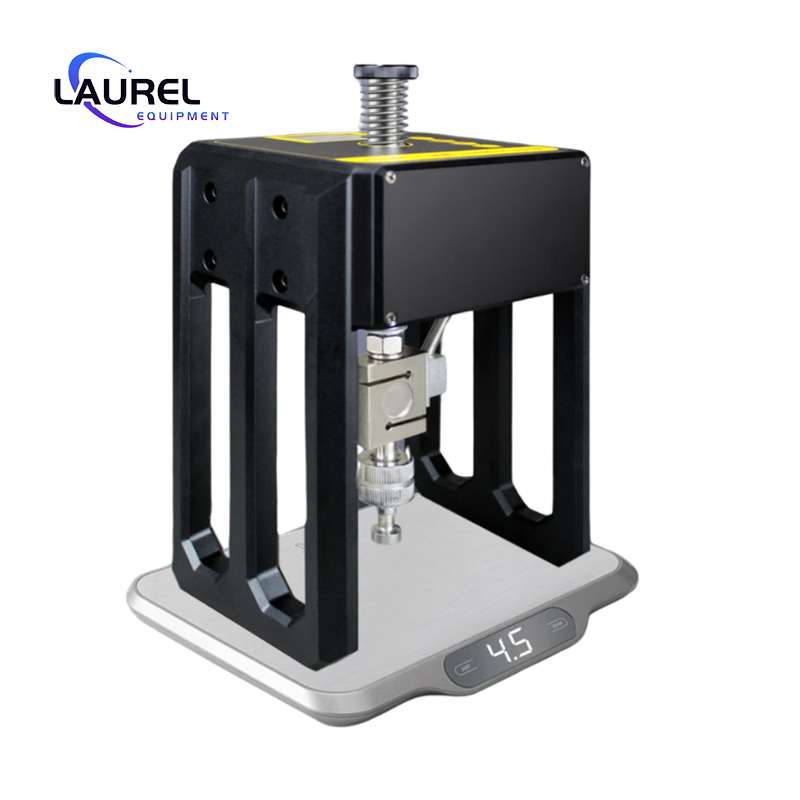

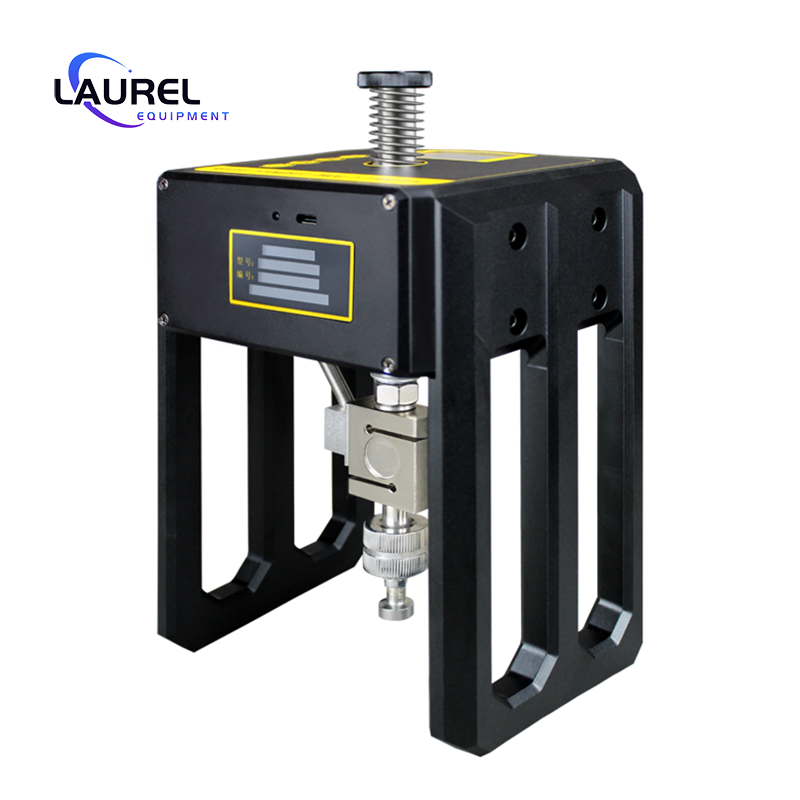

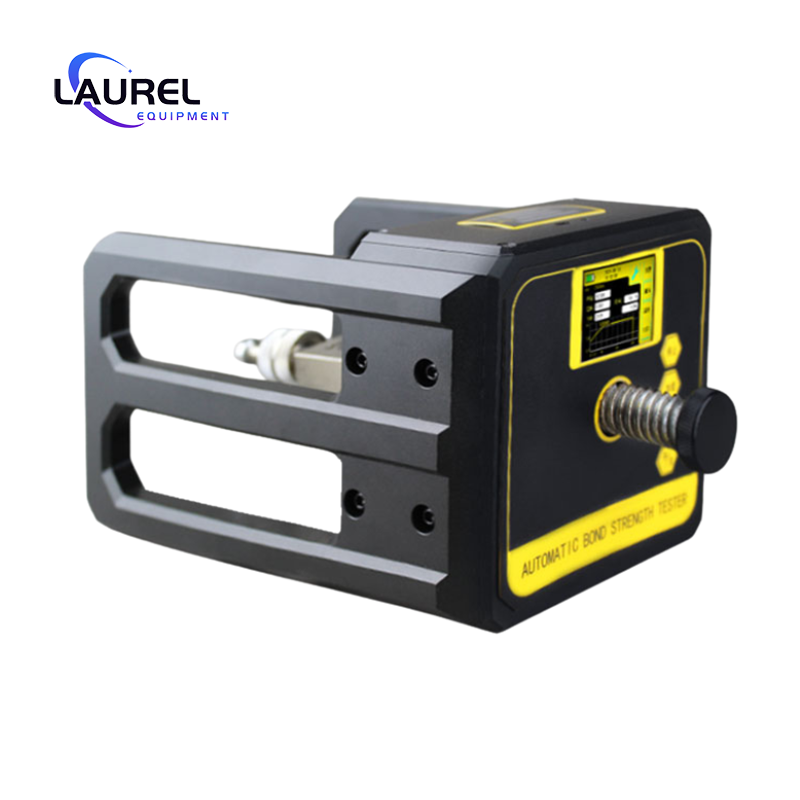

The C002 automatic bond strength tester for building insulation materials is a newly developed, integrated electromechanical testing instrument with a stable “door-type” monolithic structure. It consists of a control display unit, high-precision S-type pull-off sensor, lead screw, and reaction bracket. The device can display test values in KN, MPa, and Psi simultaneously. It is lightweight, equipped with an easy-to-operate labor-saving handle, and supports one-key electric loading via a micro-motor. It is specially designed for professional testing of the bonding strength and pull-off force of various building materials.
Advantage
The automatic bond strength tester for building insulation materials adopts integrated structure with micro-motor electric one-key loading, no manual operation needed. Transmission parts are 42CrMo with quenching and tempering treatment, shell is high-strength aluminum alloy, ensuring super high durability, high load capacity and elegant appearance, and the hollow leg design optimizes hand grip feeling. |

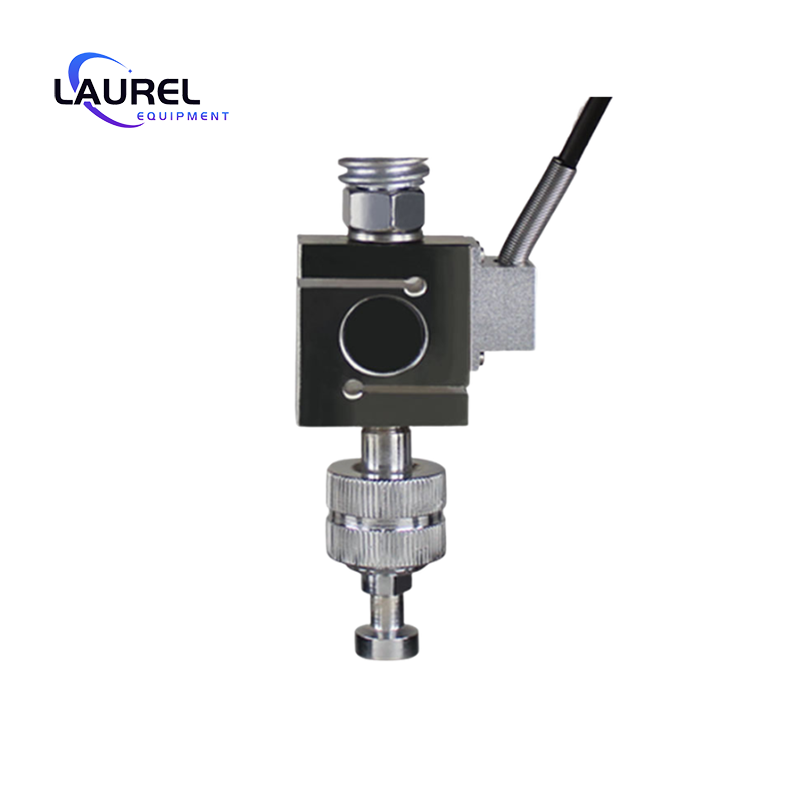

Equipped with high-precision S-type sensor with accuracy grade over 0.5%F.S, the 0.5%F.S precision bond strength detector realizes real-time display of force value, strength value, displacement and speed, with peak holding and 10-segment polyline correction functions, ensuring ultra-precise and reliable testing data for various building material bonding detection. |

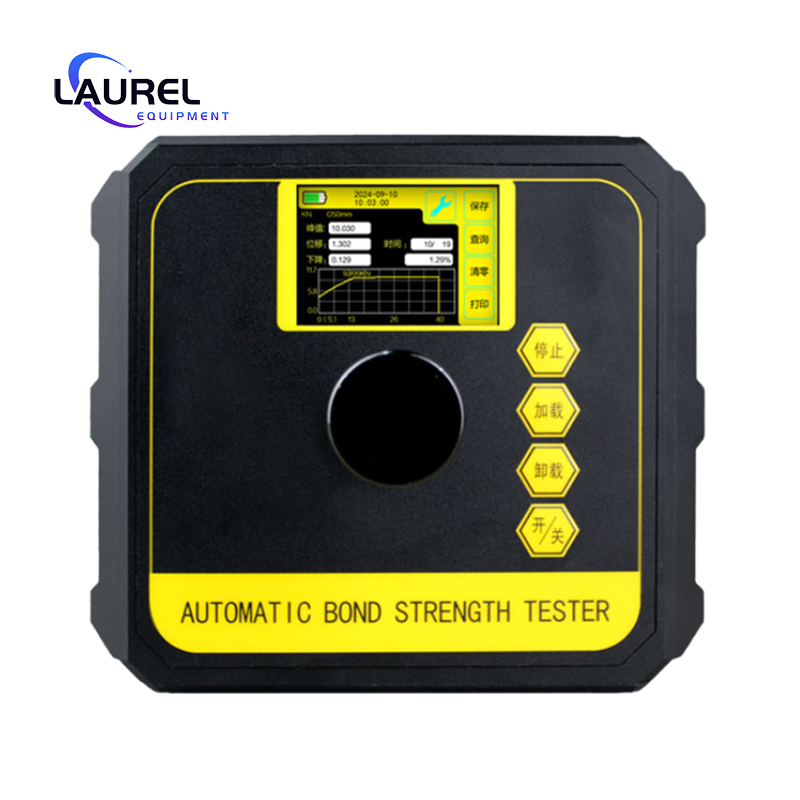

The instrument is designed with 2.2-inch touch screen plus external keys for clear display and easy operation, supports force-strength-time curve display and fixed load setting function that auto-stops at the set force, meeting diverse on-site testing needs of different building materials and scenarios. |
The Bluetooth printing bond strength tester has dual hardware & software safety protection, 200,000 pieces of data storage capacity, supporting data record, query, deletion and export; optional Bluetooth printer realizes on-site direct printing of test results, making data viewing and archiving more convenient. |
As a Type-C interface bond strength tester, it is powered by imported lithium battery with Type-C interface, which can be equipped with large-capacity external power supply for longer battery life, suitable for long-time on-site construction engineering testing withoff power supply anxiety. |
Technical Parameters
Item | Parameter | Item | Parameter |
Display Mode | KN, MPa, Psi displayed synchronously | Printing Function | Bluetooth printing (optional) |
Control Mode | Touch screen + physical keys | Host Material | Light aluminum alloy |
Measuring Range | 0~10KN | Storage Capacity | 200,000 pieces of data |
Resolution | 0.001KN | Accuracy Grade | 0.5%F.S |
Peak Holding | Supported | Curve Display | Force/strength value vs time curve |
Displacement Resolution | 0.01mm | Displacement Range | 50mm |
Tensile Speed | 4~14mm/min (adjustable) | LCD Screen | 2.2-inch touch screen |
Fixed Load Function | Supported | Numerical Correction | 10-segment polyline correction |
Application
1、The automatic bond strength tester for building insulation materials is used for pull-off force test of insulation material fixing nails in construction engineering, accurately detecting the connection firmness and providing data support for insulation engineering safety.
2、Specialized in detecting the bonding strength of wall thermal insulation materials, effectively evaluating the bonding performance between insulation materials and wall substrates, and ensuring the construction quality of building insulation systems.

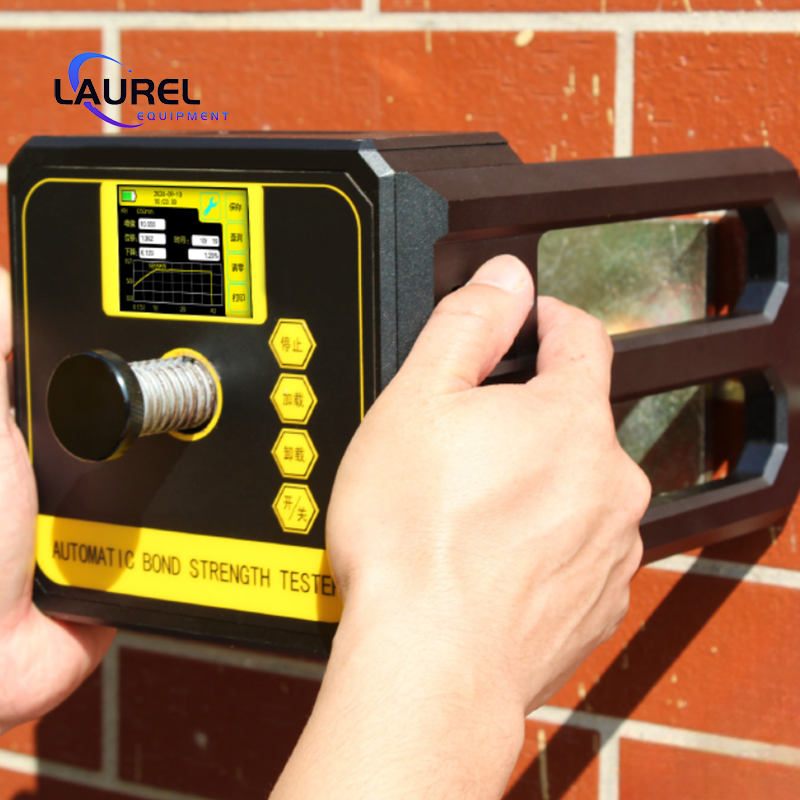

3、Suitable for testing the bonding strength of exterior wall facing tiles, accurately measuring the tile-wall bonding force to avoid falling hazards and guarantee the quality of building exterior decoration projects.
4、Applicable to bonding strength detection of carbon fiber materials, various plates and paints, widely used in on-site testing of building decoration and structural reinforcement engineering by professional inspection institutions.
5、A professional testing instrument for construction engineering quality inspection, ideal for on-site quality acceptance and random inspection of various building material bonding projects, essential for construction quality supervision departments.
