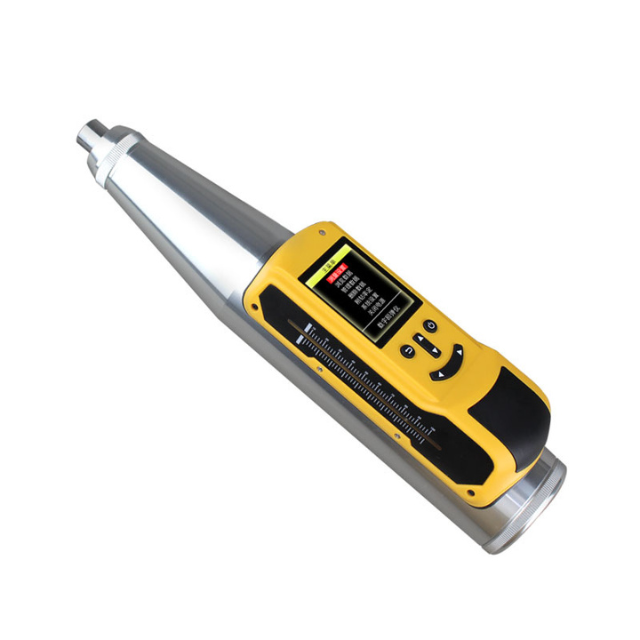

Integrated Digital Concrete Rebound Hammer

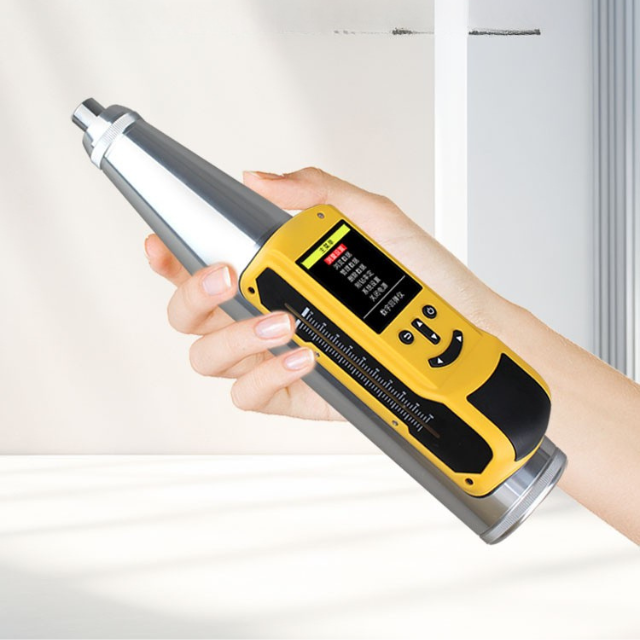

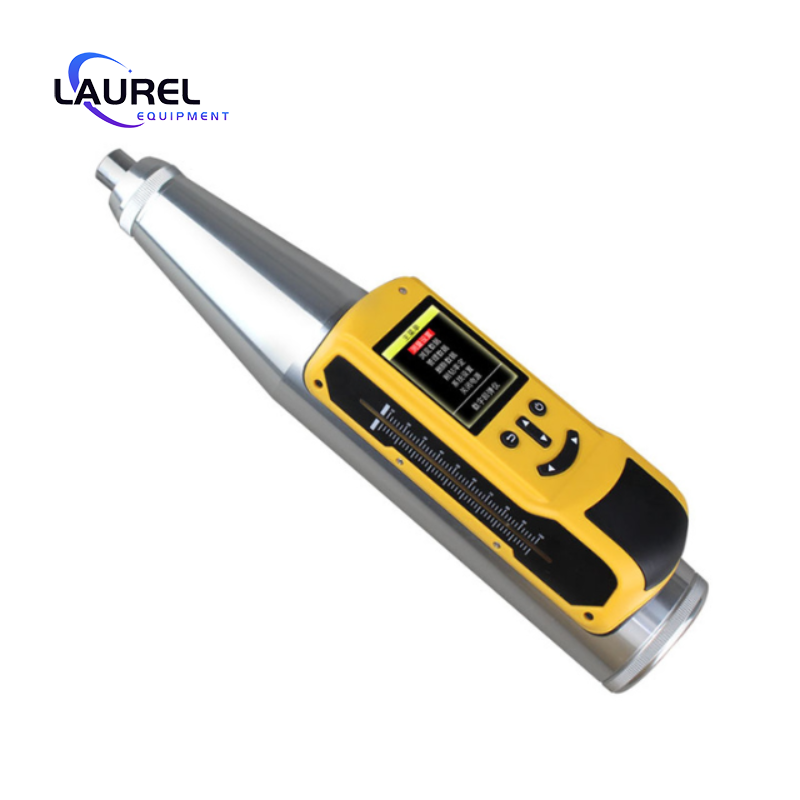

Integrated Digital Display **Concrete Rebound Hammer** (also known as **Rebound Hammer**, **Schmidt Hammer** or **Concrete Test Hammer**) is a professional non-destructive testing instrument for concrete compressive strength detection. It features modular digital design and non-contact grating sensor for data acquisition, with automatic data recording, storage, calculation and processing functions. It supports voice broadcast, data upload, and national standard-compliant automatic data analysis & test report generation. It greatly improves detection efficiency, reduces labor intensity, and ensures scientific, accurate and reliable test results, with a strength detection range of 10~60MPa.

Model:
C006

Quantity:
Availability:





Inquire Add to Basket

Introduction

COO6Integrated Digital Display **Concrete Rebound Hammer** (also known as **Rebound Hammer**, **Schmidt Hammer** or **Concrete Test Hammer**) is a professional non-destructive testing instrument for concrete compressive strength detection. It features modular digital design and non-contact grating sensor for data acquisition, with automatic data recording, storage, calculation and processing functions. It supports voice broadcast, data upload, and national standard-compliant automatic data analysis & test report generation. It greatly improves detection efficiency, reduces labor intensity, and ensures scientific, accurate and reliable test results, with a strength detection range of 10~60MPa.

Advantage

It supports inputting 3 carbonation depth test values and automatically calculates the average value, ensuring the accuracy and compliance of test results without manual calculation errors.

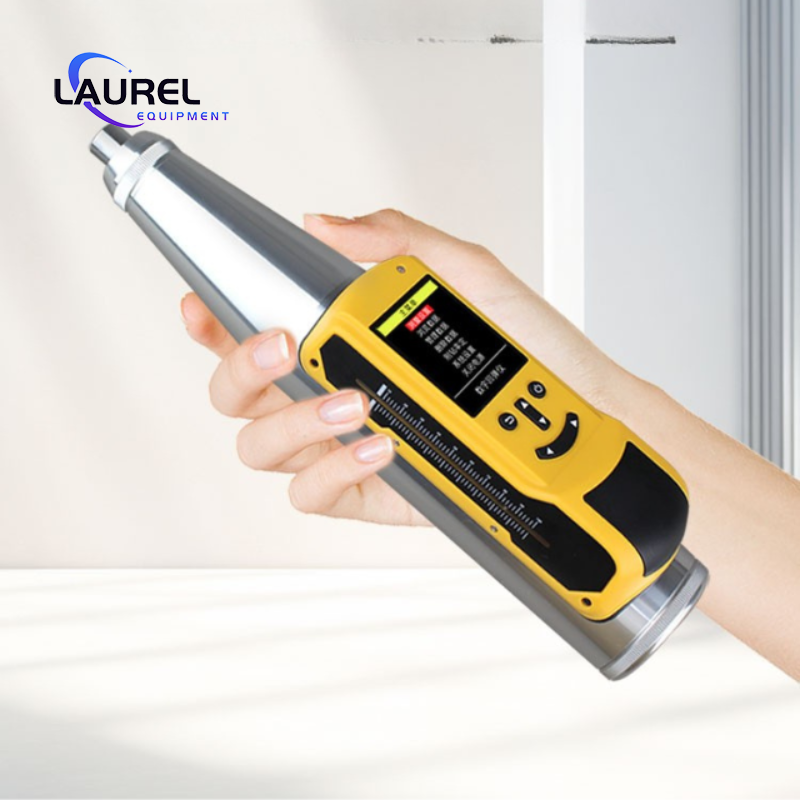

2.0" color LCD (220×176px) for clear data display in any light; flexible silicone buttons, ergonomic comfortable grip; supports Simplified Chinese & English.

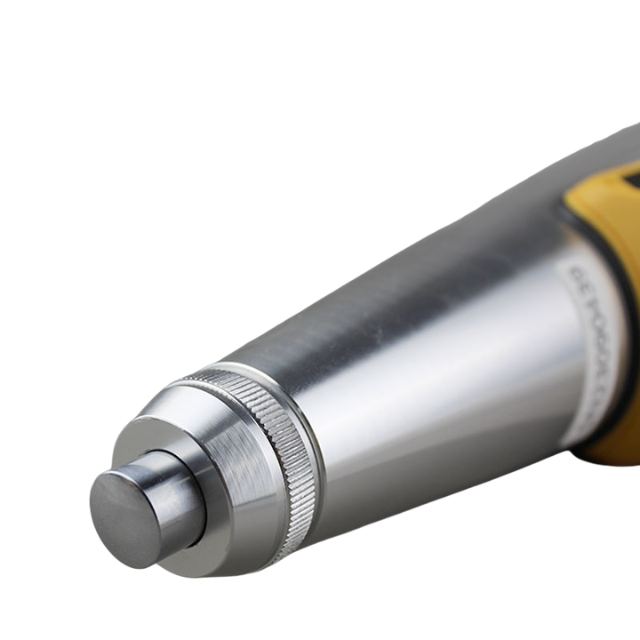

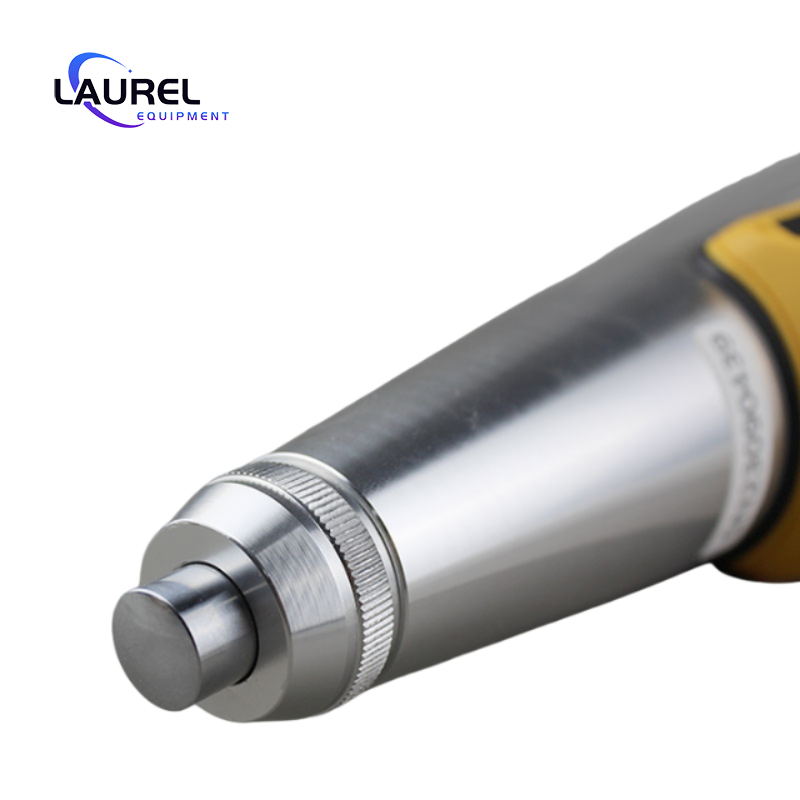

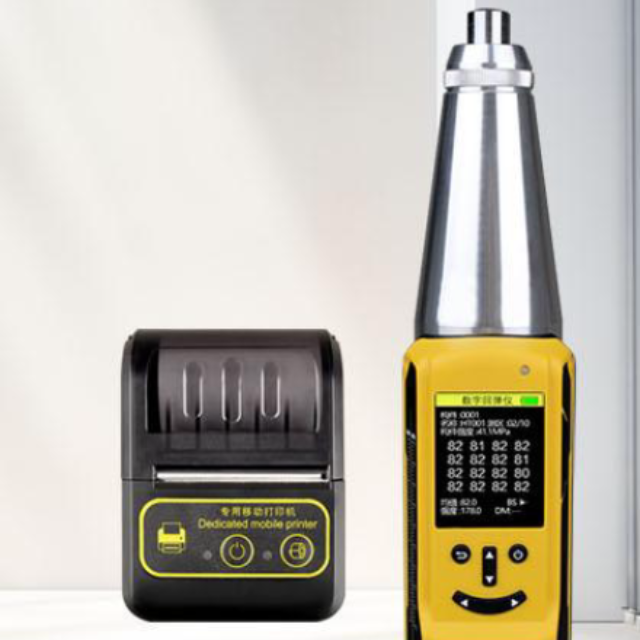

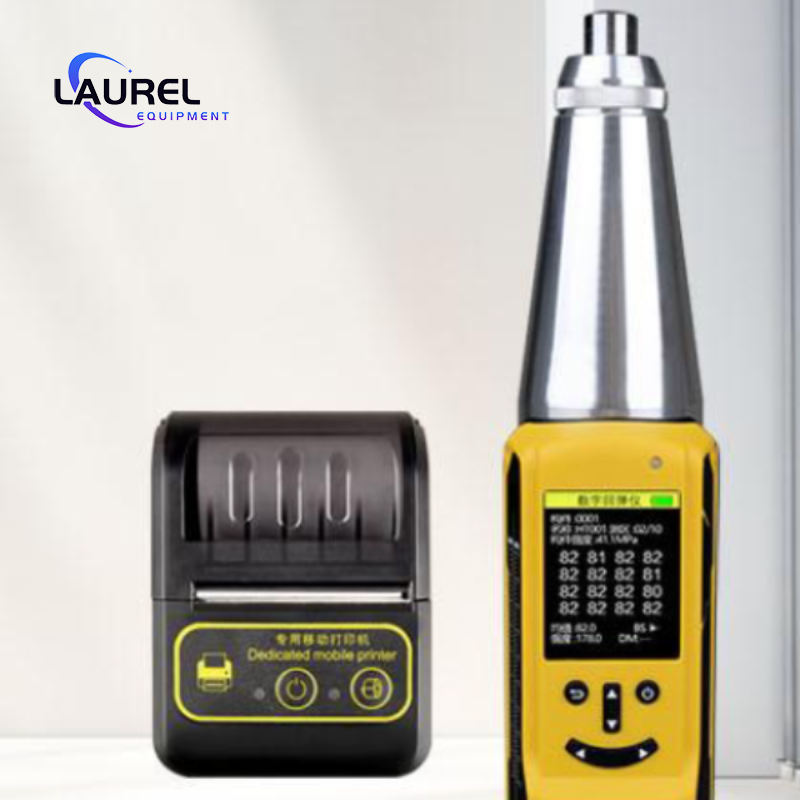

Detachable digital module & mechanical rebound unit for easy maintenance; built-in steel anvil calibration (calibration info recording, rebound times viewable); supports program updates; Bluetooth printer compatible for on-site printing, enabling efficient intelligent on-site testing.

Multiple data transmission modes supported; selective test data transfer/print/export/delete for different components, easy on-site data management & post-analysis; test result voice broadcast supported, improving operation convenience & avoiding manual reading errors.

Technical Parameters

Item	Details
Product Name	Integrated Digital Display Concrete Rebound Hammer (Schmidt Hammer / Rebound Hammer)
Strength Detection Range	10~60MPa (compliant with industry standards for Concrete Test Hammer)
Indication Consistency	≤±1 (difference between mechanical pointer reading and instrument screen reading)
Display Screen	2.0-inch color LCD screen, 220x176 pixels
Operation Mode	Silicone button operation
Power Supply Mode	USB power supply / charging
Product Dimensions	360121297 mm
Language Support	Simplified Chinese, English
Calibration Function	Built-in steel anvil rate calibration, record calibration information
Data Transmission	Support USB data export, Bluetooth transmission (optional)
Applicable Standards	ISO 1920-7,ENV 206,ASTM C805

Application

1. Non-destructive testing of ordinary concrete compressive strength in structural engineering by rebound method, which is the core application scenario of this **Concrete Rebound Hammer**.

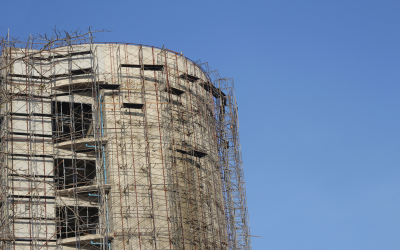

2. Construction quality acceptance testing of building concrete structures, to verify whether the concrete strength meets the design and specification requirements.

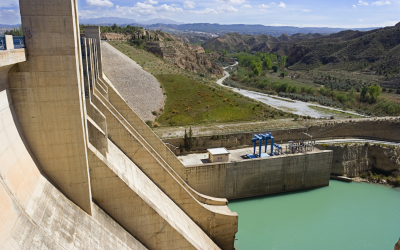

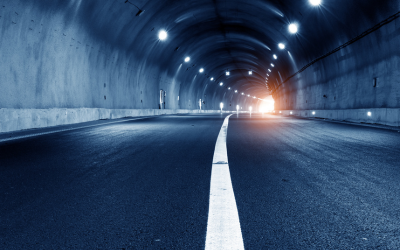

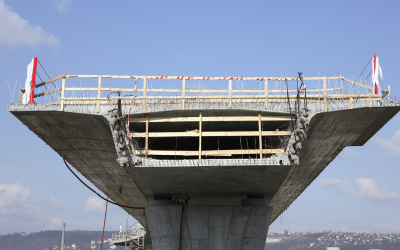

3. Concrete strength detection of bridge, tunnel, water conservancy and other infrastructure projects, to evaluate the structural safety and durability.

4. Safety and durability evaluation of under-construction structures, as well as reinforcement quantity and strength detection during the evaluation and renovation of existing structures.

5. On-site rapid testing in railway, highway, port and other engineering projects, which can quickly generate test results and reports to improve project efficiency.
