C004
| Quantity: | |
|---|---|
Introduction

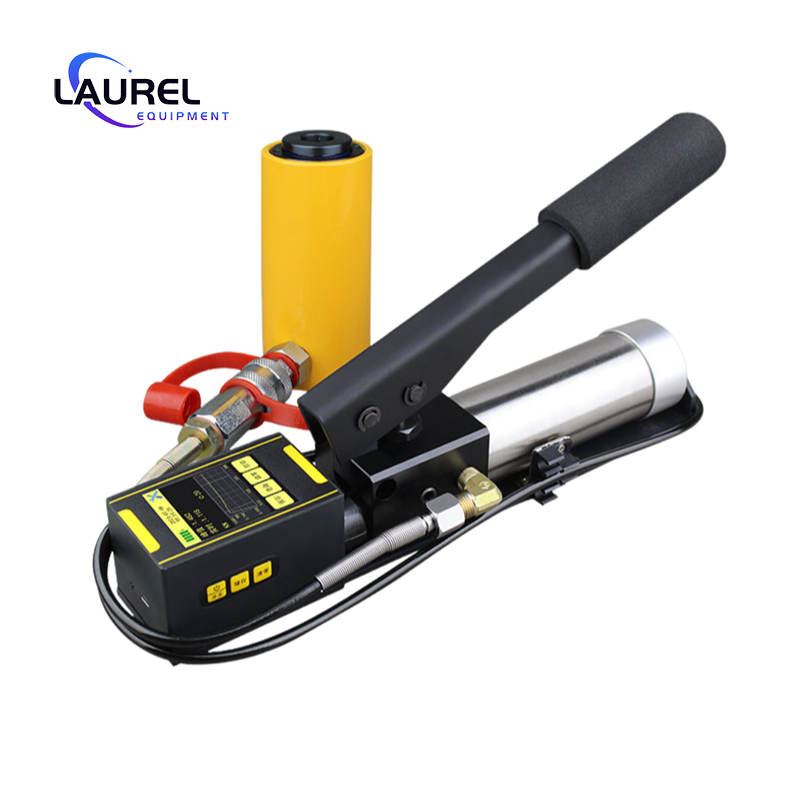

The C004 touch screen intelligent mini pull-out tester is an integrated high-precision testing instrument consisting of a manual pump, hollow hydraulic cylinder, intelligent digital pressure gauge and other components. It adopts an integrated design with a hollow self-resetting hydraulic cylinder and digital display. It supports direct force reading in KN/MPa, and provides peak hold, data storage and automatic shutdown functions. With advanced technology, easy operation and a 1-year warranty, it is especially suitable for pull-out force testing in laboratories and on-site applications.
Advantage
The portable hydraulic mini pull-out tester is handheld, no external power needed, applicable to all on-site construction and laboratory scenarios with strong versatility. |

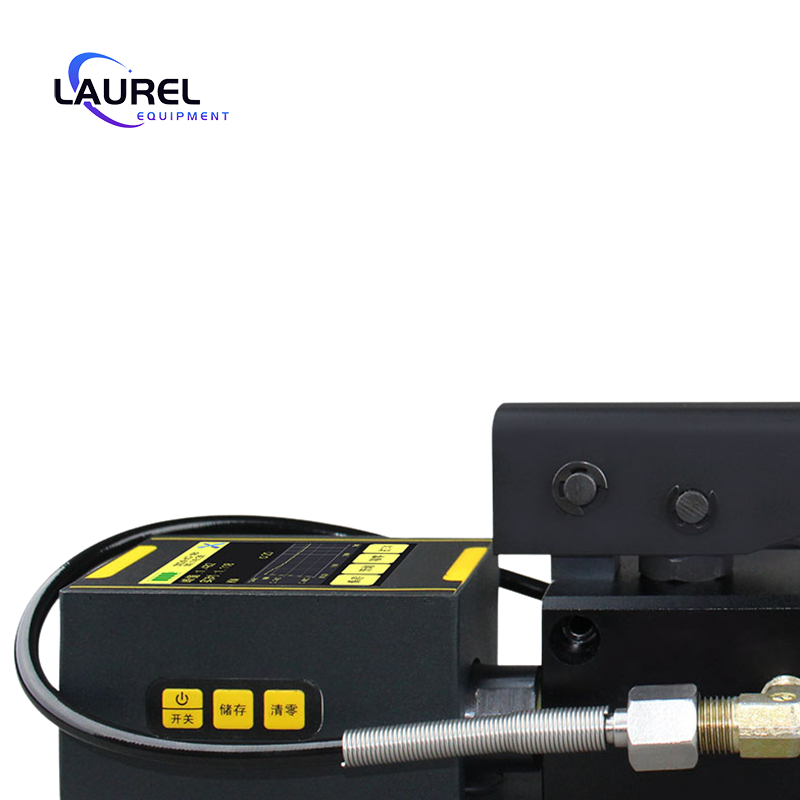

2.8-inch full touch screen with one-key Chinese-English switch; ≤±1%F.S accuracy, 0.001KN/MPa resolution and pressure curve display for precise, intuitive data. |
The Type-C rechargeable anchor pull-out tester has Type-C port + high-capacity lithium battery; 200,000 data storage, computer connectable for easy data export. |

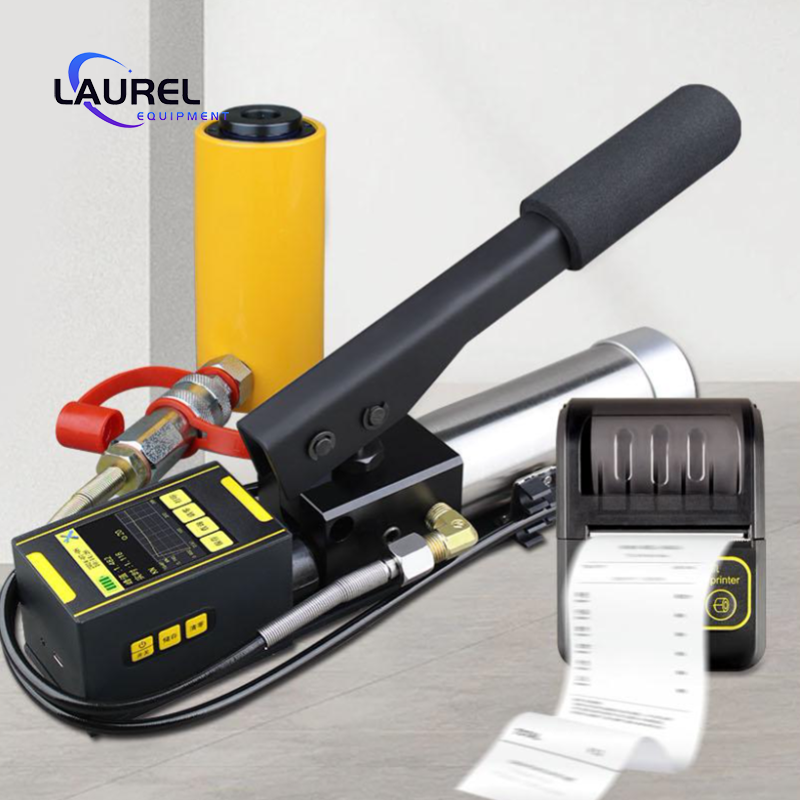

The Bluetooth printing anchor bolt pull-out tester supports night light, load speed prompt; optional Bluetooth printer for on-site printing, auto-shutdown for energy saving. |
Technical Parameters
Item | Parameter |
Maximum Pressure | 0-10/20/30/50KN |
Indication Error | ≤±1%F.S |
Resolution | 0.001KN / 0.001MPa |
Display | 2.8-inch full touch LCD, Chinese-English switch, pressure curve |
Data Function | 200,000 storage, computer connectable, peak hold |
Power Supply | Type-C charging, high-capacity lithium battery |

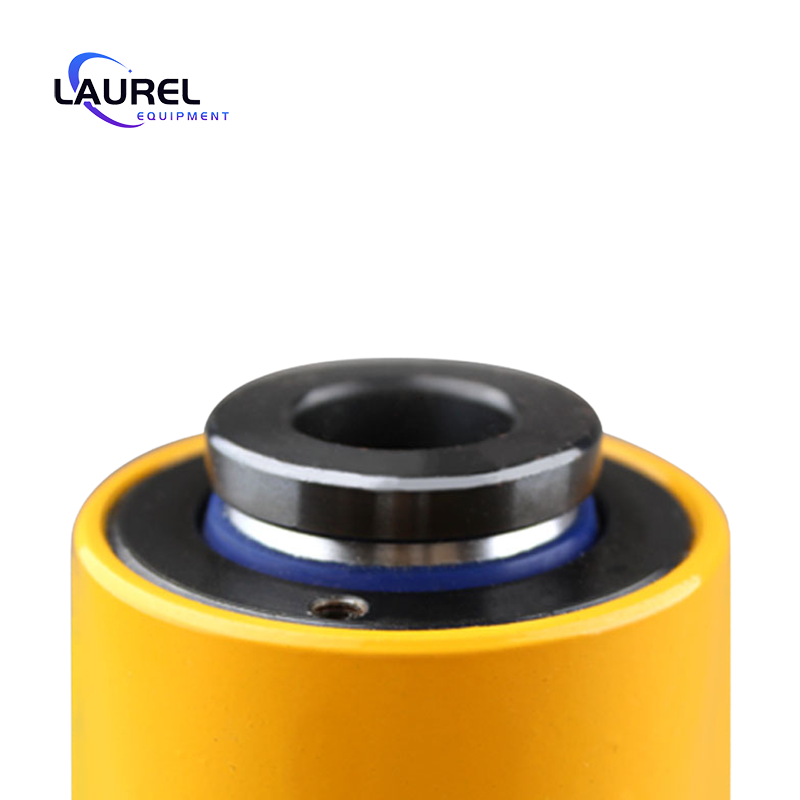

Hydraulic Cylinder | 18mm center hole, 50mm stroke, 2KG weight |
Pressurization Mode | Manual, load speed prompt |
Extra Functions | Overload protection, auto-shutdown, optional Bluetooth printing |
Application
1.High-precision rebar planting pull-out tester for detecting pull-out force of rebar planting, chemical anchor bolts and expansion bolts, the core instrument for building structure reinforcement engineering quality inspection.
2.Bluetooth printing anchor bolt pull-out tester applies to on-site pull-out force testing of glass curtain wall fasteners, effectively evaluating component connection firmness to ensure exterior decoration engineering safety.
3.Portable hydraulic mini pull-out tester is used for rock bolt (cable) pull-out detection in foundation pit support and geotechnical engineering, meeting professional construction and quality inspection on-site testing needs.
4.Type-C rechargeable anchor pull-out tester for laboratory precision testing of various fastener pull-out performance and construction engineering on-site random inspection, a must for quality supervision departments.
5.Touch screen intelligent mini pull-out tester is suitable for acceptance testing of concrete structure post-anchoring and masonry structure engineering, adapting to various complex on-site construction environment detection.
