Introduction
The R001 Spectrophotometer (Professional Edition) is a high-precision portable color measuring device integrating spectrophotometry and color difference analysis, developed with advanced self-owned spectral core technology. It is built-in with a double-row 32-group silicon photodiode array sensor and imported professional white board, with repeatability ΔE*ab controlled within 0.04 and excellent inter-instrument difference. Balancing fast measurement speed and easy operation, it supports PC software control and seamless Bluetooth connection with mobile devices, ensures consistent multi-device measurement data, and is a professional color control tool for plastic electronic color detection, coating ink color measurement and multi-industry on-site color inspection.
Technical Parameters

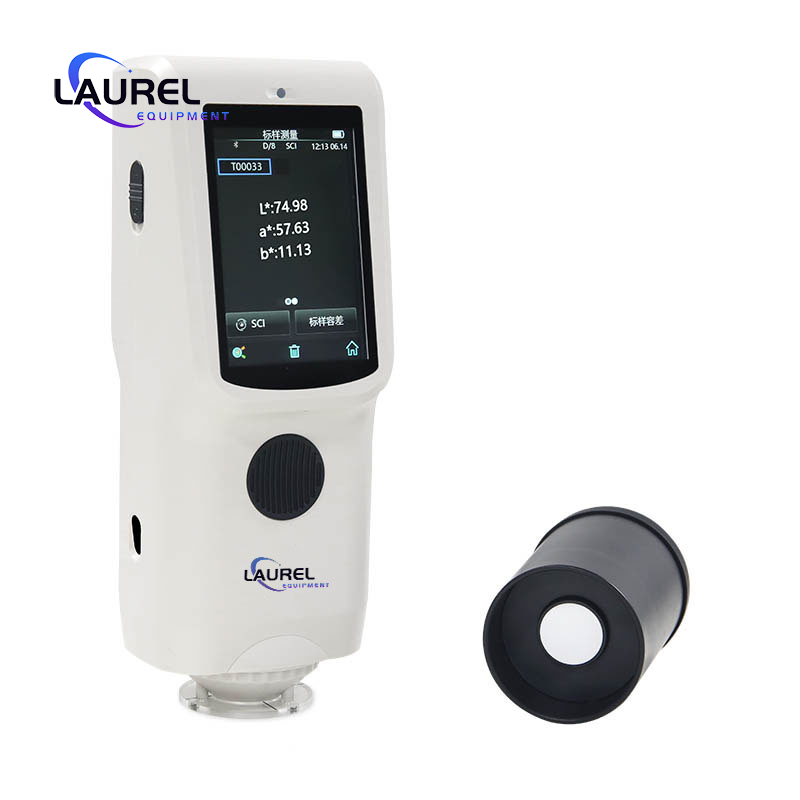

Ultra-high Precision Measurement for Industrial Color Control & Plastic Electronic Color Detection Equipped with imported non-fading professional white board and high-resolution grating spectroscopy technology, it achieves repeatability ΔEab ≤0.04 after preheating calibration and inter-instrument difference ΔEab ≤0.35. The highly consistent multi-device data fully meets the strict color control needs of mass production, and is ideal for plastic electronic color difference tester to detect small electronic components and plastic parts with high precision. |
High-efficiency Optoelectronic System for Coating Ink Spectrophotometer & Rapid Color Detection Adopts full-band balanced LED light source and double-row 32-group silicon photodiode array sensor that resists strong light saturation. Shortens measuring time to about 1.5s, ensures stable and accurate rapid color detection for coating, ink and paste materials, and is a professional coating ink spectrophotometer for laboratory and workshop batch consistency testing. |
Flexible Aperture Configuration for Textile Printing Color Detector & Diverse Sample Measurement The portable high-precision color analyzer supports Φ8mm (optional Φ4mm) customized measuring aperture, precisely fitting small-size samples like textile fabrics and printing paper. Adopting D/8 SCI measurement mode compliant with international standards, it is a dedicated textile printing color detector for fabric chromaticity and color difference testing with strong multi-sample adaptability. |
Massive Cloud Storage for Ceramic Tile Color Analyzer & On-site Building Material Color Matching Locally stores 500 standard samples and 10,000 test samples, with exclusive APP supporting cloud private color database construction and real-time synchronization. Eliminates heavy physical color cards, enables fast data query and comparison, and is a practical ceramic tile color analyzer and portable building material color matching meter for on-site color inspection and matching of ceramics and building materials. |

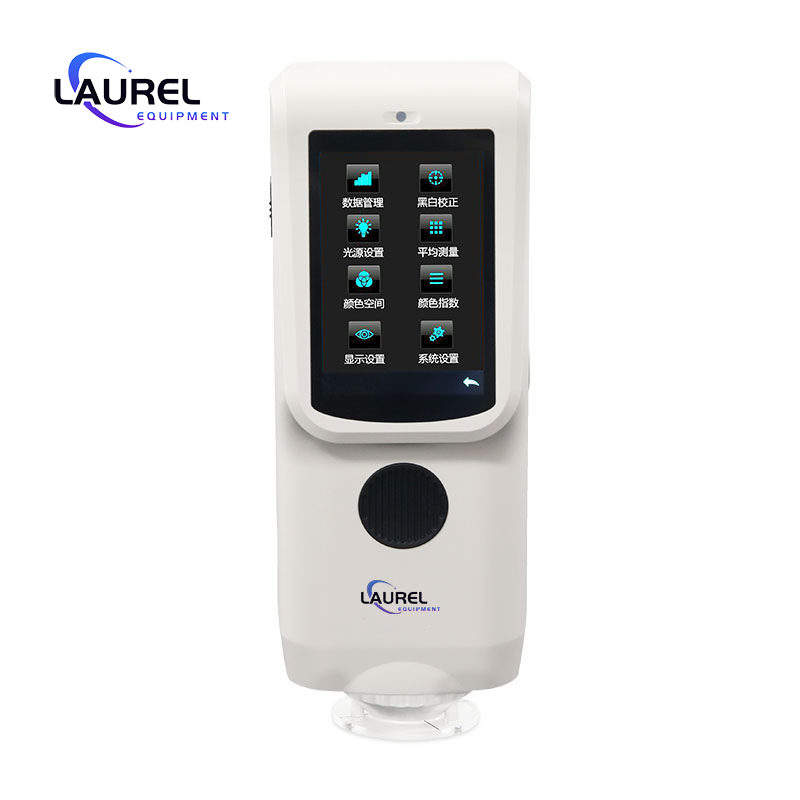

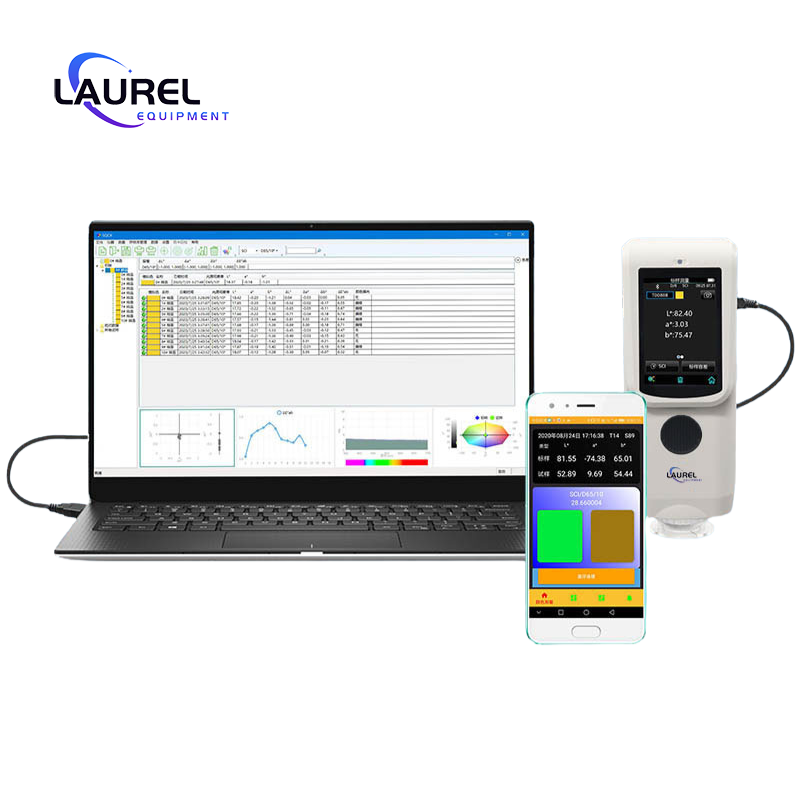

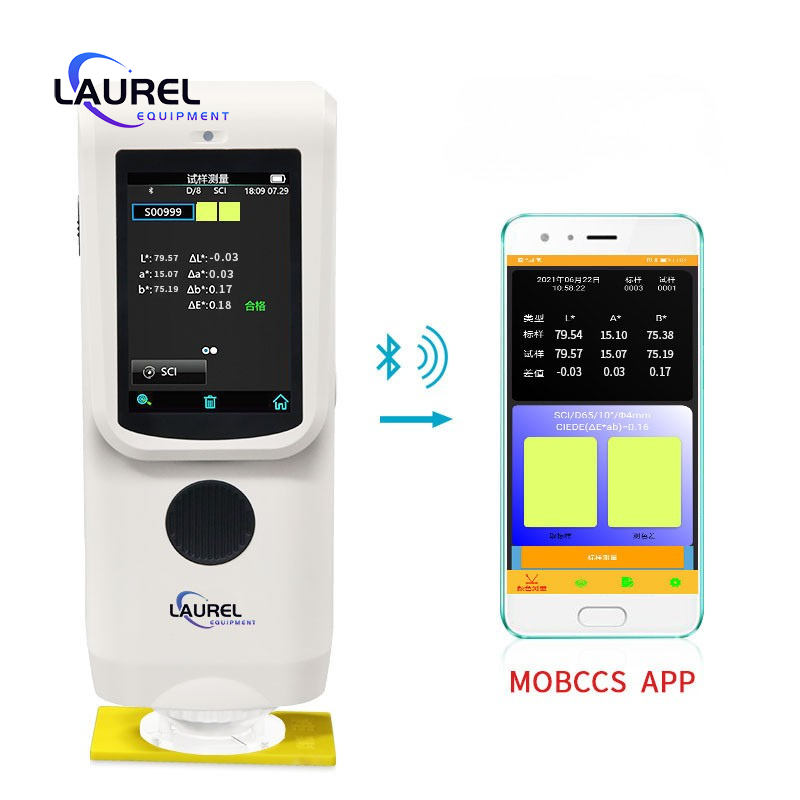

Humanized Design for Universal Industrial Color Tester & Multi-scenario Operation With ergonomic casing and 3.5-inch TFT true color capacitive touch screen, the portable spectral color difference meter supports standalone operation with real-time data viewing, and is compatible with SQCX software and Bluetooth 5.0. Lightweight (460g) and portable, it adapts to laboratory testing, production line quality control and all industries’ on-site industrial color detection needs. (64 words). |
Application
1.Plastic & Electronic Industry - Plastic Electronic Color Difference Tester
This plastic electronic color difference tester accurately measures the color difference of plastic shells, small electronic components and plastic precision parts. The flexible Φ4mm/Φ8mm aperture adapts to all small-spec plastic electronic samples, realizing fast color quality inspection for incoming materials, production processes and finished products, and improving industrial quality control efficiency.
2.Coating & Ink Industry - Coating Ink Spectrophotometer
As a professional coating ink spectrophotometer, it conducts high-precision color measurement and difference analysis for coating slurries, finished coatings and ink products. Portable for laboratory and workshop on-site use, it detects batch-to-batch color consistency in real time and supports timely formula adjustment to ensure uniform color quality of coating and ink products.
3.Textile, Garment & Printing Dyeing Industry - Textile Printing Color Detector
The dedicated textile printing color detector accurately tests the chromaticity value and color difference of textile fabrics, dyed garments and home textile products. It quickly judges fabric color qualification, helps optimize printing and dyeing processes, and fully guarantees the color quality and batch consistency of textile and printing products in mass production.
4.Ceramic & Building Material Industry - Ceramic Tile Color Analyzer & Building Material Color Matching Meter
This ceramic tile color analyzer and portable building material color matching meter performs high-precision color measurement for ceramic blanks, glazes, finished ceramic tiles and various building materials. Adapting to the special surface characteristics of ceramics and building materials, it is suitable for on-site detection and color matching in workshops and warehouses.
Advantage
Item | Specifications |
Product Model | R001 (Professional Edition) |
Illumination Method | D/8 (diffuse illumination, 8° direction reception) SCI measurement; Complies with CIE No.15, GB/T 3978, GB 2893, ISO7724-1, ASTM E1164, DIN5033 Teil7 |
Integrating Sphere Size | Φ40mm |
Light Source | Combined full spectrum LED light source (Life: ＞3 million measurements in 5 years) |

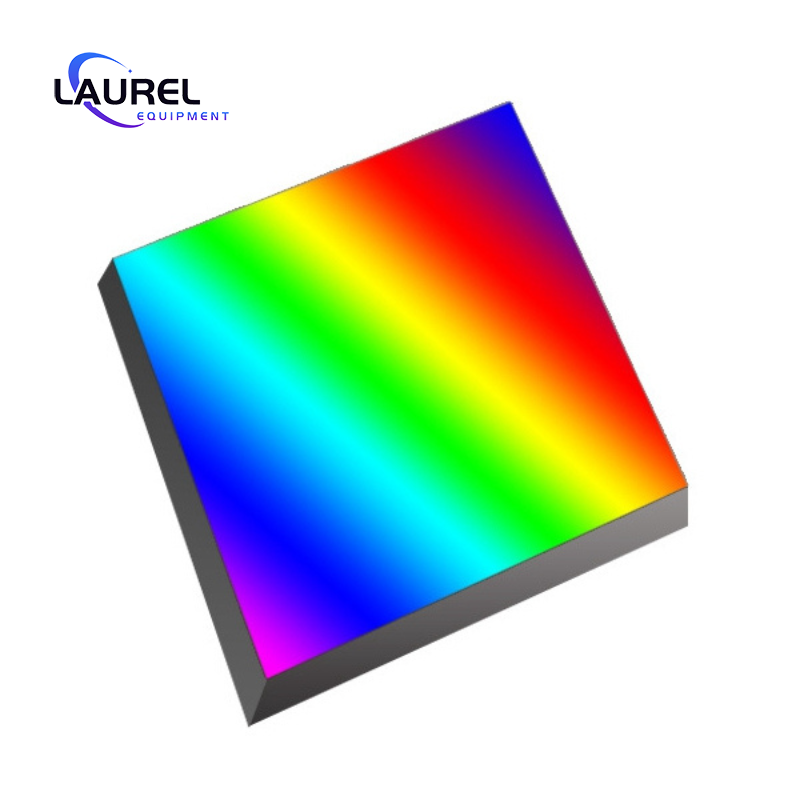

Spectral Method | Plane grating spectroscopy |

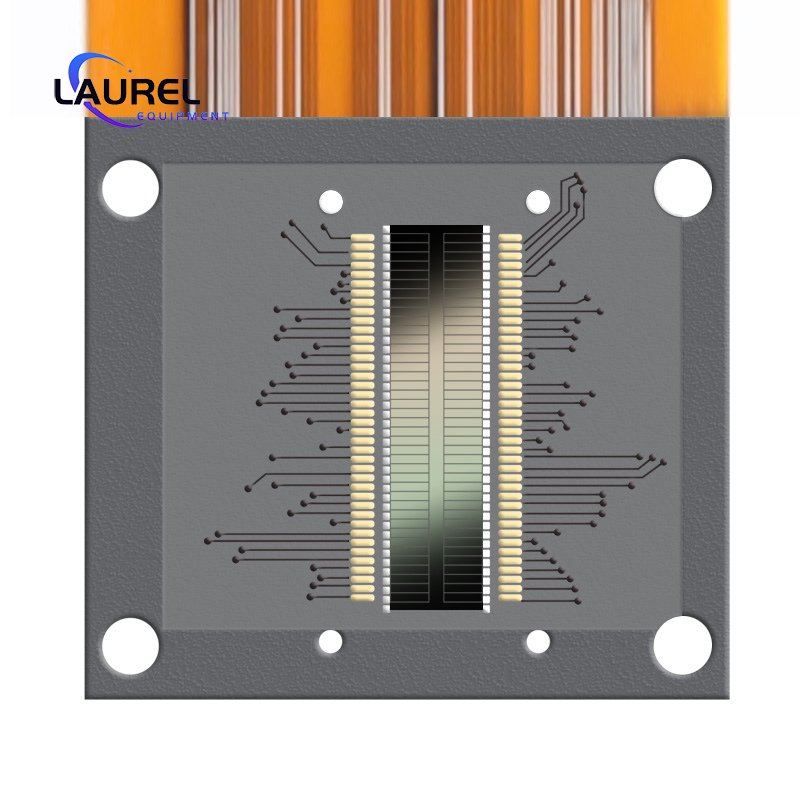

Sensor | Silicon photodiode array (double row 32 groups) |
Measuring Wavelength Range | 400～700nm |
Wavelength Interval | 10nm |
Half Bandwidth | 10nm |
Measuring Range | L: 0~120; Reflectivity: 3 specified wavelengths (440/550/600nm default) on device, full-band display via APP |
Measuring Aperture | Single aperture: Φ8mm (Φ4mm optional) |
Focus Mode | Fixed focus |
Light Containing Method | SCI |
Color Space | CIE LAB, XYZ, Yxy, LCh |
Color Difference Formula | ΔEab, ΔE00 |
Other Chromaticity Indexes | Realized via exclusive APP |
Observer Angle | 10° |
Observation Light Source | D65, A, F2(CWF) |
Display Content | Reflectivity, chromaticity value, color difference value/graph, pass/fail result, color simulation, color deviation |
Display Accuracy | 0.01 |
Measuring Time | About 1.5s |
Repeatability | MAV/SCI, ΔE*ab ≤0.04 (after preheating calibration) |
Inter-instrument Difference | MAV/SCI, ΔE*ab ≤0.35 (average of BCRA Series Ⅱ 12 color plates) |
Measurement Method | Single measurement, average measurement (2~99 times) |
Dimension (L×W×H) | 81×71×214mm |
Weight | Approx. 460g |
Battery | Lithium battery; 6000 measurements within 8 hours (fast charging supported) |
Display Screen | 3.5-inch TFT true color capacitive touch screen |
Interface | USB, Bluetooth®5.0 |
Data Storage | 500 standard samples, 10,000 test samples (local); massive storage via APP |
Language | Simplified Chinese, English |
Operating Environment | 0~40℃, 0~85%RH (no condensation), Altitude ＜2000m |
