Introduction

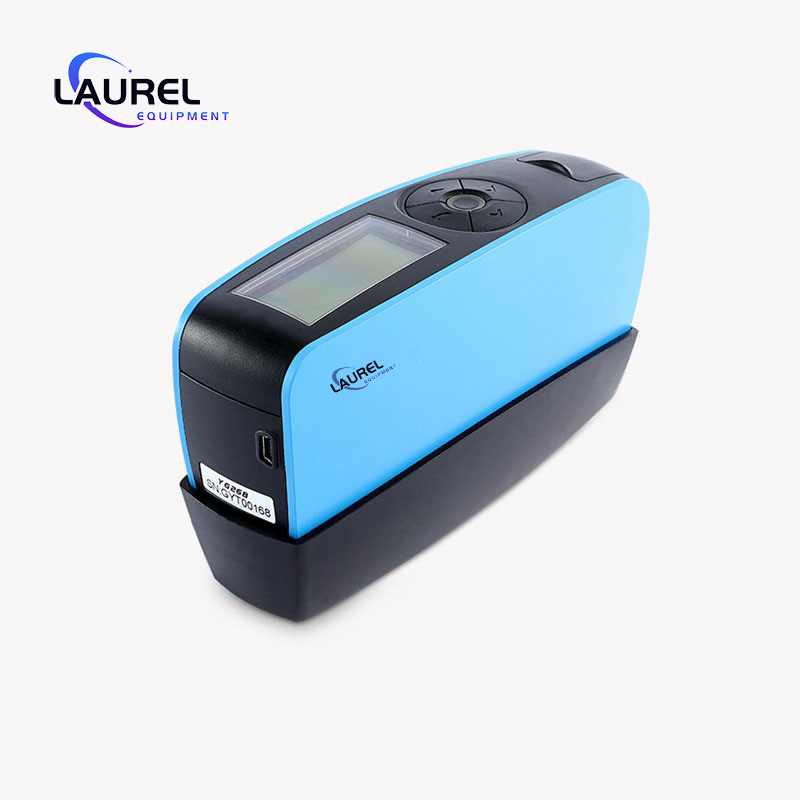

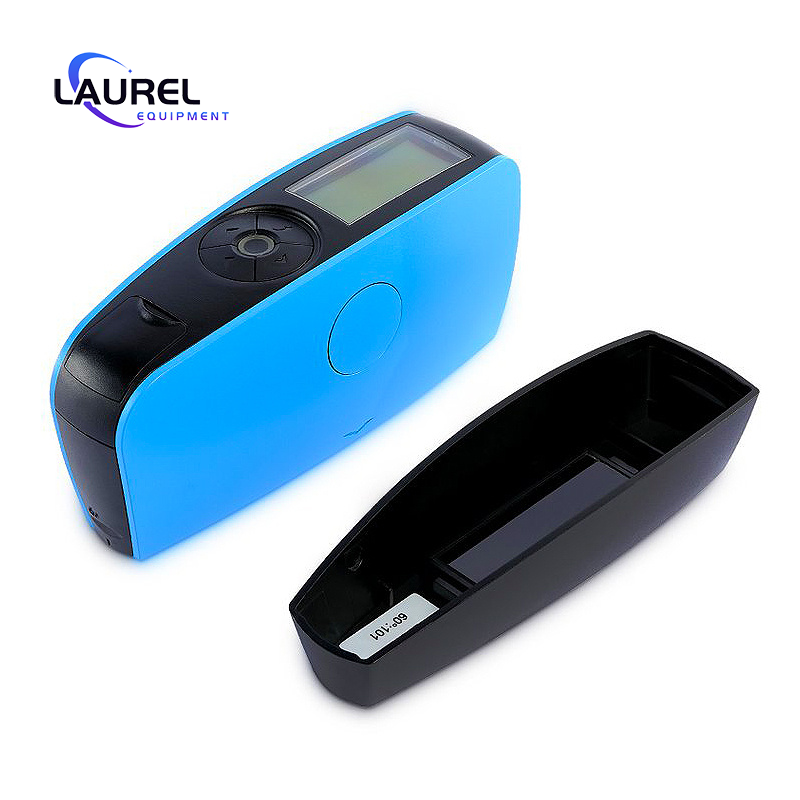

R003 is a tri‑angle high‑precision gloss meter developed in accordance with ISO 2813, ASTM D523, GB/T 9754 and meets JJG 696 standards. It supports 20°/60°/85° measurement, automatic calibration, large data storage, multiple working modes and professional quality management software. It is widely used for surface gloss testing and quality control in paint, ink, plastic, electronics, printing, furniture, ceramic, metal, stone and other industrial fields.
Advantage
Tri-angle measurement & wide application range Supports 20%/60°/85° three-angle detection with 0.5s per angle. Measuring rangecovers 0-2000GU, suitable for low, medium and high gloss surfaces. It meetsdiversified testing needs and ensures stable and reliable data output. |
Automatic calibration & high accuracy & stability Equipped with automatic calibration inspection function, it ensures long‑term measurement stability. Repeatability reaches ±0.2GU (0–100GU) and ±0.2%GU (100–2000GU), fully complying with JJG 696 professional grade requirements. |
Large data storage & professional quality control software Stores up to 35,000 measurement records and supports basic, statistical, continuous and quality control modes. GQC6 software enables data analysis, report printing and extended functions for efficient quality management. |
Ergonomic design & portable & energy saving Compact curved body, lightweight at about 300g, easy to carry and operate. Adjustable auto power‑off (30–120s) and low power consumption. Powered by AA battery for over 10,000 tests or USB power supply. |
Technical Parameters
Item | Specifications |
Model | R003 Tri - Angle High Precision Gloss Meter |
Measuring Angles | 20° / 60° / 85° |
Measuring Time | 0.5s per angle |
Working Modes | Basic, Statistical, Continuous, Quality Control |
Display | 2.3 inch monochrome screen |
Interface | USB, optional Bluetooth 5.0 |
Weight | Approx. 300g |
Language | Chinese, English, Traditional Chinese |
Operating Environment | 0–40℃, <85%RH non condensing |
Optional Accessories | Mini printer, Bluetooth 5.0 |
Application
1.Paint, Ink & Coating Industry
As a professional paint ink gloss tester, it accurately measures gloss of coatings,paints, inks and surface finishes. Tri-angle design adapts to various gloss levels,realizing fast batch inspection and ensuring appearance consistency of coatingproducts.
2.Plastic & Electronic Industry
As a dedicated plastic electronic gloss meter, it tests surface gloss of plastic shells,electronic components, films and panels. It helps control surface treatment quality,ensures batch consistency and improves appearance quality of plastic and electronicproducts.
3.Printing & Paper Industry
As a reliable printing paper gloss meter, it detects gloss of paper, cards, packagingand printed products. It helps adjust printing and coating parameters, ensures stablegloss performance and improves quality and grade of printing and packagingproducts.
4.Ceramic, Stone & Furniture Industry
As a professional ceramic stone gloss detector, it measures gloss of ceramic tiles,marble, furniture panels and wood products. It adapts to hard and smooth surfaces,suitable for factory inspection and warehouse sampling to guarantee surface glossconsistency.
5.Metal, Plating & Hardware Industry
As an efficient metal plating gloss tester, it performs gloss measurement for metal, electroplated parts, hardware and decorative surfaces. It monitors polishing and plating effects, detects surface defects and provides stable data for quality control.
